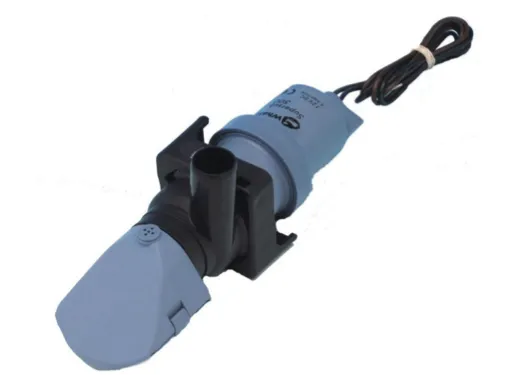

The Whale Supersub 500 is a low profile electric bilge pump suitable for narrow bilges or where space is restricted. The Supersub 500 has a flow capacity of up to 1900 ltrs (500 US gals) per hour and the low profile design leaves the bilge almost dry depending on installation. With a multi-position outlet and long caulked wires installation is quick and simple. The Supersub 500 is also easy to maintain with a snap fit strainer easily removed for cleaning.
Key Features
- Easy installation - Outlet and pump body rotate to suit your installation
- High performance
- Efficient operation - Very low power consumption
- Easy to clean - Snap fit assembly
- Low profile strainer - Leaves the bilge almost dry
- Integrated bleed ball - Prevents airlocks
- Long term reliability - Comes with extra long wire
Techy Bits, Dimensions & Weights
- Open Flow Rate : 500 US GPH (32 ltrs/min) @ 13.6V DC
- Flow Rate @ 1 m Head : 400 US GPH (25 litres/min)
- Nominal Voltage : 12 V DC
- Current Draw : 2.4 Amps
- Recommended Fuse Size: 5 Amp
- Wire Size (Caulked Wire) : 1.5mm (16 AWG)
- Weight : 270g (0.6 lbs)
- Hose Connectors : 19mm (3/4")
- Materials : Pump Body : Polypropylene, High Temperature ABS,. Locking Ring : Acetal, Impeller : Glass Filled Polypropylene Seals, Nitrile , Fasteners : Stainless Steel
- Overall Height : 75mm (3")
- Overall Width : 54mm (2 1/8")
- Overall Length : 173mm (7 3/16")
